PP 25-1288 AUTOMATIC ASPHALT COMPACTION
Asphalt Equipment

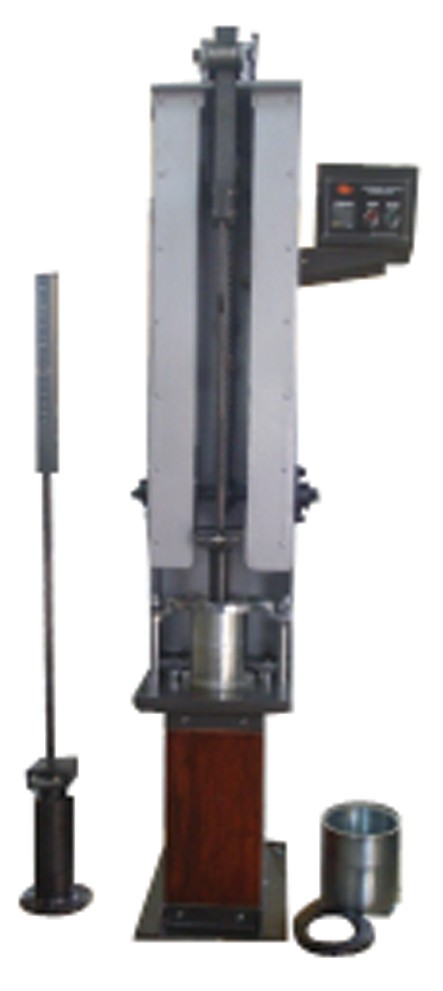

This machine is designed ruggedly constucted automatic compactor provides a consistent and even degree of compaction, the unit comprising pedestal with laminated Hardwood Block secure to concrete base by 300 mm square x 25 mm thick steel plate. Specification : 1. Frame Machine : - Power requrement : 220 V-AC. - Electromotor power for driven sliding mass : 800 watt, 1 phase. - Digital Counting system with key button to adjust of blows frequency. 2. Hammer Sliding Mass : - Weight : 4535 gr. - Height of drop : 457 mm - Compaction foot diameter : 98.52 mm. 3. Pedestal - Hard wood block : 200 mm square 450 mm height. - Density : 550 to 650 kg/m3. - Steel Base Plate : 300 mm square x 25 mm thick. 4. Compaction Mould 4" dia : 1 set, includes in this set of equipment. - Compaction foot and rod : 3560 gr. Optional if required : - Compaction Mpuld 6" for Modified samples complete with compaction foot. Dimension (l x w x h) : 535 x 535 x 1880 mm Gross weight : 250 kg
