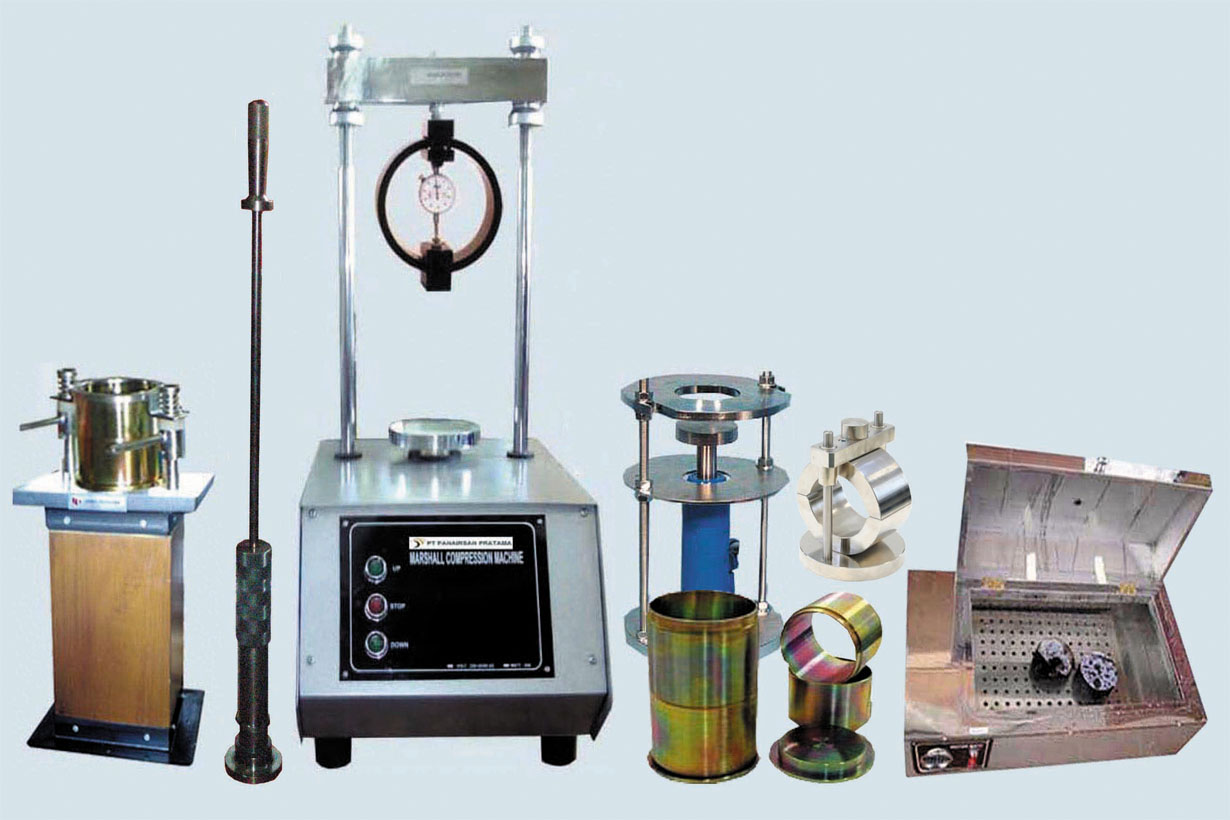

PP 25-1282 MARSHALL TEST SET
Asphalt Equipment
ASTM D-1559 / AASHTO T-245 For determining the resistance to plastic flow of cylinder specimen of bituminous paving mixture loaded on the lateral surface by means of the marshall apparatus.
- Dimensions (l x w x h)
- 67 x 50 x 100 cm
- Gross Weight
- 200 kg
Consists Of:
PP 25-1282-1
Compression Machine Steel frame electric, 220 V-AC, 1/2 HP 1 Phase, speed : 2" per-minute.
1 set
PP 25-1282-2
Standard Compaction Mold Machined steel, galvanized, 4"dia., 3" height, with collar and base plate
1 set
PP 25-1282-3
Modified Compaction Mold Machined steel, galvanized 6" dia., 4 1/4" height, with collar and base plate
1 set
PP 25-1282-4
Stability Mold Cast alumunium, split type 4" i.d., 4" wide
1 set
PP 25-1282-5
Compaction Hammer Machine steel, plated 10 lbs, hammer weight, 18" drop height for 4" and 6" dia
1 set
PP 25-1282-6
Compaction Pedestal Wooden base with steel platen for 4" and 6" dia
1 set
PP 25-1282-7
Compaction Mold Holder Machine steel, quick clamping system for 4" and 6" dia
1 set
PP 25-1282-8
Extruder. Steel frame, hydraulic system for 4" and 6" dia
1 set
PP 25-1282-9
Flow Meter Cast alumunium, clamping bolt, with dial indicator 30 x 0.01 mm
1 set
PP 29-1278
Water Bath Stainless steel, water heater, 220 V-AC thermostat 30 - 85 deg.C
1 set
PP 29-1268-6
Proving Ring. 6000 lbs capacity.
1 set
