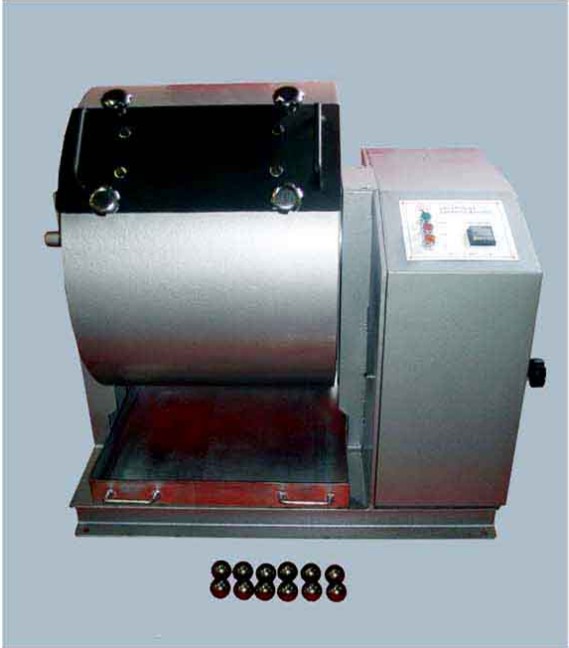

PP 26-1276 LOS ANGELES ABRASSION MACHINE
Aggregate Equipment
ASTM C-131 / AASHTO T-96 For measuring degradation of mineral aggregates from abrassion, impact and grinding. The machine comprises a heavy steel cylinder, rotated about its horizontal axis, 30-33 rpm. The filing aperture is provided with a cover and a safety stop buttom is prominently positioned. The machine is fitted with a revolution counter.
- Dimensions (l x w x h)
- 120 x 100 x 150 cm
- Gross Weight
- 450 kg
Consists Of:
PP 26-1276-1
Los Angeles Abrasion Machine Frame : Welded steel frame 8 and 12 cm steel profile Drum : 1/2" thick steel plate. 28" inner dia. / 20" inner width. Automatic Counter: Digital, module system for easy maintanance Panel button : ON-OFF-RUN-STOP JOG-RESET-500-1000 Power : Electromotor, dual voltage 110-220 V, 750 watt, 1 Phase Heavy duty speed reducer. Drum Speed : 30 - 33 RPM.
1 pc
PP 26-1276-3
Catching Pan, Galvanized steel.
1 pc
Optional Part:
PP 26-1276-2/a
Steel Ball Steel 5000±25 gr
12 pc
PP 26-1276-2/b
Steel Ball Steel 4584±25 gr
11 pc
PP 26-1276-2/c
Steel Ball Steel 3330±20 gr
8 pc
PP 26-1276-2/d
Steel Ball Steel 2500±15 gr
6 pc
