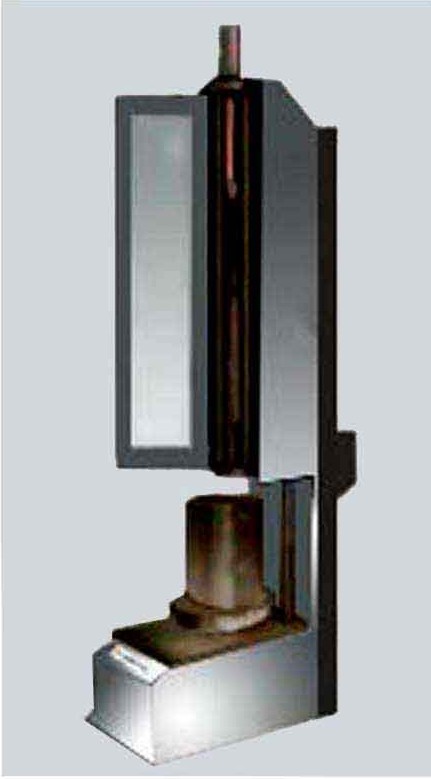

PP 23-1296 AUTOMATIC SOIL COMPACTION
Soil Equipment
For compacting of soil samples to test CBR requirement with automatic counting adjustable. This machine is designed to eliminated effect of Hand operated compaction method, the rammer weight and height is adjustable to suit the requirements of test CBR and Proctor compaction. An automatic blow pattern ensure optimum compaction for each layer of soil and the number of blows per layer can be set. Frame Machine: Power by Electrical motor for driven 220 V-AC, 1/2 Hp, 1 phase Electromagnetic solenoid to adjust of rammer activity , Digital Counting system with key button to adjust of CBR or proctor compaction. RammerWeight: Model BS standard 2.5 kg and 4.5 kg, Model ASTM standard 5.5 lb and 10 lb Height drop, BS standard adjustable 300 mm and 450 mm, ASTM standard adjustable 12 inch and 18 inch, Dimension BS standard 50 mm diameter, ASTM standard 2 inch.
- Dimensions (l x w x h)
- 40 x 60 x 160 cm
- Gross Weight
- 250 kg
Consists Of:
PP 23-1296-1
Compaction Mold Standard
1 pc
PP 23-1296-2
Compaction Mold Modified
1 pc
