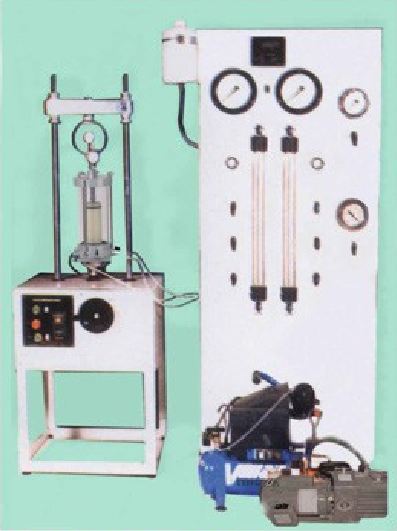

PP 23-1295 TRIAXIAL TEST SET
Soil Equipment
The Triaxial Test Set provides test loads up to 300 kgf at any speed from 0.00 to 3.00 mm per minute. This feature provides the capability for use in application such as: constant rate of load and constant rate of stress. The Triaxial Test Set has direct digital reading for pore pressure measuring and a single switch for loading or unloading of sample making it extremely easy to use. A movable cross-head allows a wide range of sample sizes to be tested with sample adjustment. Optional proving rings for load measuring devices are available for accurate load measurement up to the capaity of the unit. Capacity: 300 kgf. Loading Speeds: 0.00 to 3.00 mm per minute. Cell (specimen). Size : 35 mm and 50 mm maximum. Controls : power on-oof switch; direct digital reading for pore pressure measurement; load-stop-unload advanced selector switch. Power : 220 - 240 VAL, 200 Watts.
- Dimensions (l x w x h)
- 200 x 160 x 80 cm
- Gross Weight
- 120 kg
Consists Of:
PP 23-1295-1
Triaxial Compression Machine variable speed, hand-operated and motorized operated with electric consumption (220 VAC/200 Watt)
1 pc
PP 23-1295-2
Load Measuring, Load Ring 300 kgf (included calibration certificate)
1 pc
PP 23-1295-3
Displacement Measuring Dial gauge 30 mm x 0.01 mm
1 pc
PP 23-1295-4
Panel Control. Measuring Pore Pressure, 10 kg/cm2 (Digital System). Measuring Cell Pressure, 10 kg/cm2 (Manometer System). Measuring Back Pressure, 10 kg/cm2 (Manometer System). Burette (for measuring pore pressure. Top Water Tank, 3 liter Capacity. Bottom Water Tank, 3 liter Capacity. Vacuum Tank.
1 pc
PP 23-1295-5
Triaxial Cells (Cell Chamber). Made of non corrosive material and acrylic transparent. Sample Pad for 35 mm specimen. Sample Pad for 50 mm specimen
1 pc
PP 23-1295-6
Constant Pressure Unit. Air Regulator for Cell Pressure. Air Regulator for Back Pressure
1 pc
PP 23-1295-7
Compressor Unit. Compressor Pump 0-10 kg/cm2
1 pc
PP 23-1295-8
Vacuum Unit Vacuum Pump 0-76 cmHg
1 pc
PP 23-1295-9
O Ring Placing Tool Φ 50 mm
1 pc
PP 23-1295-10
O Ring Placing Tool Φ 35 mm
1 pc
PP 23-1295-11
Suction Membrane Device Φ 50 mm
1 pc
PP 23-1295-12
Suction Membrane Device Φ 35 mm
1 pc
PP 23-1295-13
Two Ways Split Former Φ 50 mm
1 pc
PP 23-1295-14
Two Ways Split Former Φ 35 mm
1 pc
PP 23-1295-15
Sample Tube Φ 50 mm
1 pc
PP 23-1295-16
Sample Tube Φ 35 mm
1 pc
PP 23-1295-17
Rubber Membrane Φ 50 mm
10 pc
PP 23-1295-18
Rubber Membrane Φ 35 mm
10 pc
PP 23-1295-19
Membrane Sealing Ring Φ 50 mm
4 pc
PP 23-1295-20
Membrane Sealing Ring Φ 35 mm
1 pc
