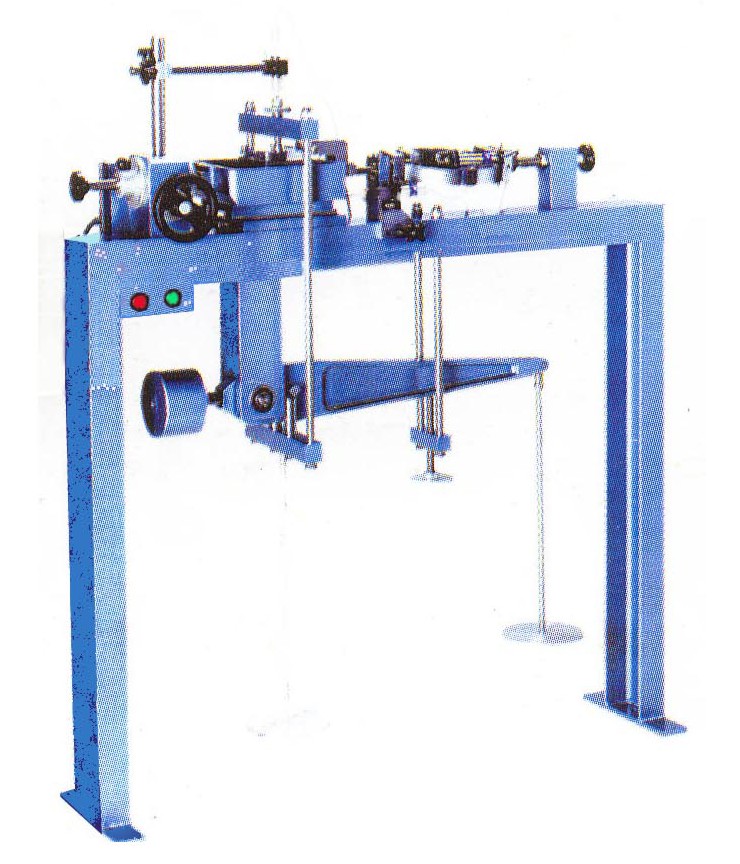

PP 23-1294/2 MOTORISED DIRECT SHEAR TEST SET
Soil Equipment
ASTM D-3080 / AASHTO T-236 For determining shearing resistance of soil sample with constant strain rate, to the each accurately of shear force and constan speed, that machine equipped by motorised operated.
- Dimensions (l x w x h)
- 13 x 50 x 130 cm
- Gross Weight
- 145 kg
Consists Of:
PP 23-1294/2-1
Loading Machine
1 pc
PP 23-1294/2-2
Frame Welded steel frame with motorised operated.
1 pc
PP 23-1294/2-3
Loading Hanger Machine steel, galvanized, supplied with slotted weight
1 pc
PP 23-1294-4
Shear Box Cast alumunium box, 63.5 mm sample dia porous stone, loading capacity.
1 pc
PP 23-1294-5
Loads Slotted, machine steel, galvanized.
1 pc
PP 23-1294-6
Load, 3167 gr weight
2 pc
PP 23-1294-7
Load, 6334 gr weight
1 pc
PP 23-1294-8
Sample Tube Machine steel, 63.5 mm dia., galvanized, with extruder.
1 pc
PP 29-1268-1
Proving Ring, 100 kg capacity.
1 pc
PP 29-1269-3
Dial Indicator, Range 10mm x 0.01mm.
1 pc
PP 29-1269-4
Dial Indicator, Range 20mm x 0.01mm.
1 pc
PP 29-1349
Wire Saw, 10 cm length approx.
1 pc
