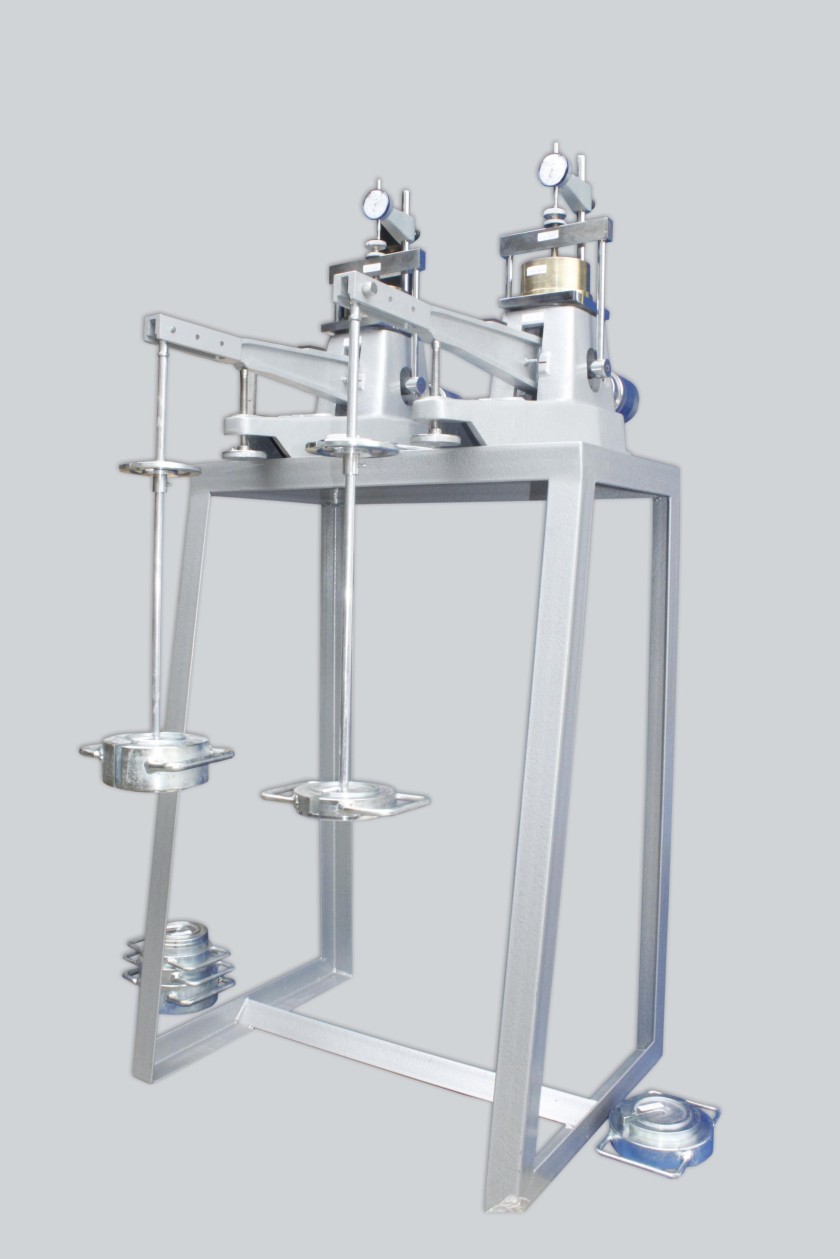

PP 23-1293 CONSOLIDATION TEST SET
Soil Equipment
ASTM D-2435 / AASHTO T-216 For determining the rate and magnitude of consolidation of soil when it is restrained laterally, loaded and drain axially.
- Dimensions (l x w x h)
- 80 x 80 x 150 cm
- Gross Weight
- 130 kg
Consists Of:
PP 23-1293-1
Consolidation Frame
1 pc
PP 23-1293-2
Frame Cast alumunium, two test unit.
1 pc
PP 23-1293-3
Loading set Three alternative lever arm 1:9, 1:10, 1:11
2 pc
PP 23-1293-4
Consolidometer Brass, 50.5 mm sample dia., porous stone loading capacity.
2 pc
PP 23-1293-5
Loads
1 pc
PP 23-1293-6
Load, 500 gr
4 pc
PP 23-1293-7
Load, 1000 gr
2 pc
PP 23-1293-8
Load, 2000 gr
2 pc
PP 23-1293-9
Load, 4000 gr
2 pc
PP 23-1293-10
Load, 8000 gr
2 pc
PP 23-1293-11
Sample Tube Machine steel, 50.5 mm dia. galvanized, with extruder.
1 pc
PP 29-1269-3
Dial Indicator Range 10 mm x 0.01 mm
2 pc
PP 29-1349
Wire Saw 10 cm length approx.
1 pc
