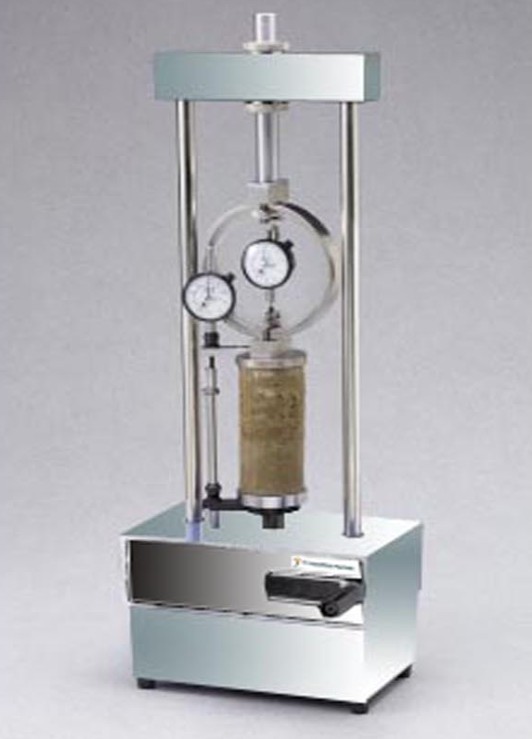

PP 23-1292 HAND OPERATED UNCONFINED COMPRESSION MACHINE
Soil Equipment
ASTM D-2166 / AASHTO T-208 For determining stes strain relationship of conesive soil without confining pressure. Consist essentially of a 100 kg proving ring capacity, 30 mm range of dial 0.01 sensitivity.
- Dimensions (l x w x h)
- 80 x 40 x 40 cm
- Gross Weight
- 50 kg
Consists Of:
PP 23-1292-1
Unconfined Compression Machine Cast aluminium, gear box adjustable height of top platen hand operated 200 Kg capacity.
1 pc
PP 23-1292-2
Sample Tubes
1 pc
PP 23-1292-3
Sample Tubes 35.0 mm dia x 70 mm height
1 pc
PP 23-1292-4
Sample Tubes 47.5 mm dia x 95 mm height
1 pc
PP 23-1292-5
Sample Tubes 70.0 mm dia x 140 mm height
1 pc
PP 23-1292-6
Split Sample Tubes
1 pc
PP 23-1292-7
Split Sample Tubes 35.0 mm dia x 70 mm height
1 pc
PP 23-1292-8
Split Sample Tubes, 47.5 mm dia x 95 mm height
1 pc
PP 23-1292-9
Split Sample Tubes 70.0 mm dia x 140 mm height
1 pc
PP 23-1292-10
Extruder
1 pc
PP 23-1292-11
Extruder 34.5 mm dia x 71 mm height
1 pc
PP 23-1292-12
Extruder 47.0 mm dia x 96 mm height
1 pc
PP 23-1292-13
Extruder 69.5 mm dia x 141 mm height
1 pc
PP 23-1292-14
Trimmer Steel frame, 3 tubes size
1 pc
PP 29-1268-1
Proving Ring 100 kg capacity
1 pc
PP 29-1269-5
Dial Indicator Range 30 mm x 0.01 mm
1 pc
PP 29-1291-1
Thin Box Alumunium, 60 gr capacity
12 pc
PP 29-1349
Wire Saw 10 cm length approx
1 pc
