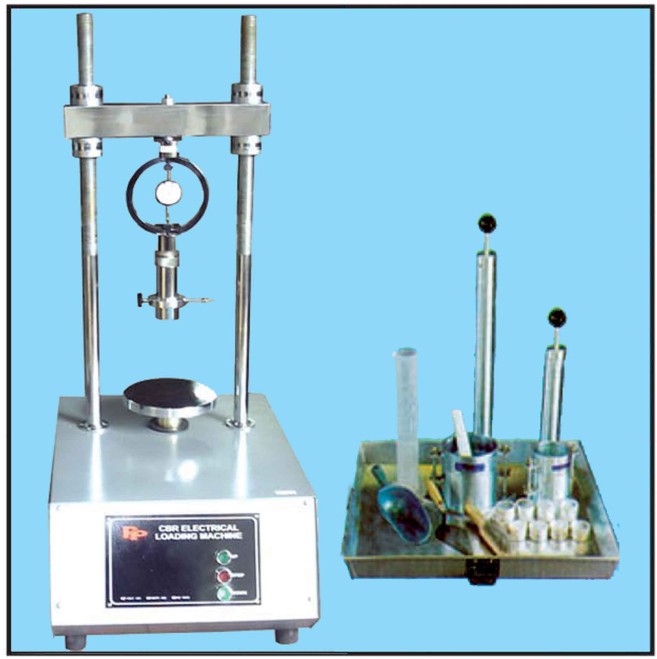

PP 23-1286 MOTORISED LABORATORY CBR TEST SET
Soil Equipment
ASTM D-1883 / AASHTO T-193 Electrical Loading System For determining the bearing ratio of soil. The electrical loading machine 220 V-AC, ½ HP, 1 Phase, Speed up to 0.05"/min, reversing switch, proving ring reading (calibrated)
- Dimensions (l x w x h)
- 110 x 70 x 120 cm
- Gross Weight
- 200 kg
Consists Of:
PP 23-1286-1
Electrical Loading Machine Electric, 220 V-AC, 1/2 HP, 1 Phase, speed 0.05"/min reversing switch 10.000 lbs capacity.
1 pc
PP 23-1286-2
CBR Mold Machine steel, 6" i.d, 7" height, 2" height of collar.
3 pc
PP 23-1286-3
Spacer Dish Machine steel, 5 15/16" dia, 2.416" height.
1 pc
PP 23-1286-4
Cutting Edge Machine steel, sharp edge.
1 pc
PP 23-1286-5
Circular Surcharge Weight Machine steel, 5 7/8" dia 5 lbs weight.
3 pc
PP 23-1286-6
Slotted Surcharge Weight Machine steel, 5 7/8" dia 5 lbs weight.
3 pc
PP 23-1286-7
Modified Proctor Hammer Machine steel, plated, galvanized 2" dia, 10 lbs weight.
1 pc
PP 23-1286-8
Filter Paper 6" dia., 100 sheets/box.
1 pc
PP 23-1286-9
Swell Plate
3 pc
PP 23-1286-10
Swell Tripot
3 pc
PP 29-1268-6
Proving Ring 6.000 lbs capacity.
1 pc
PP 29-1269-5
Dial Indicator, range 30 mm >0.01 mm
1 pc
PP 29-1286-4
Square Pan Galvanized steel, 65 x 65 x 7.5 cm.
1 pc
PP 29-1291-1
Thin Box Alumunium, 60 gr capacity.
12 pc
PP 29-1293-6
Graduated Cylinder Plastic, 1000 ml capacity.
1 pc
PP 29-1343-2
Scoop Cast alumunium.
1 pc
PP 29-1361-1
Trowel Pointed type.
1 pc
PP 29-1351-1
Straight Edge 254 mm length.
1 pc
