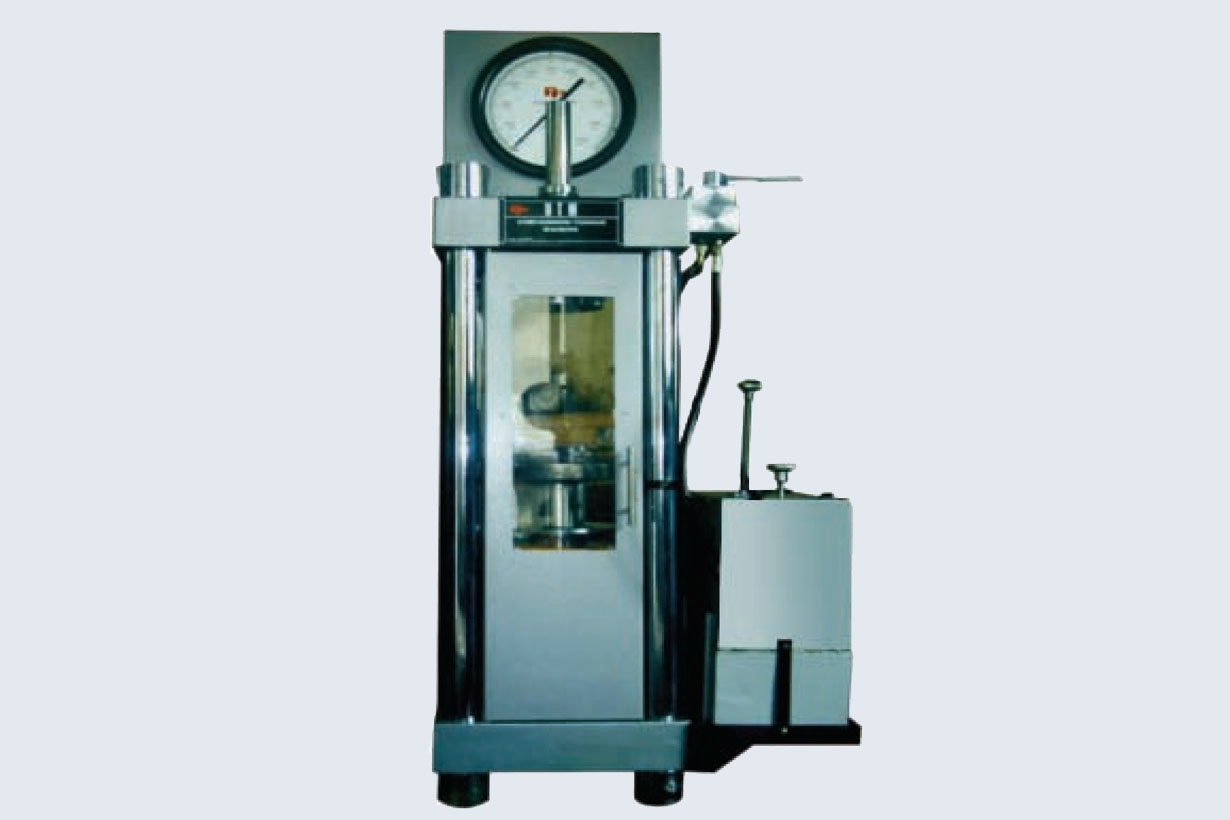

PP 24-1283 UNIVERSAL TESTING MACHINE (UTM)
Concrete Equipment

Application : For use of compression, tensile and more test. Compact design and rigidly frame to ensure capability of any test. Frame : Maximum vertical clearence between platens : 340 mm Maximum horizontal clearence : 250 mm Upper and Lower platen diameter : 220 mm Maximum travel of hydraulic piston : 100 mm Mootorized Hydraulic Power Pack : Electric consumption : 1000 watts, 1 phase 50-60 Hz, 220 V-AC. Double action, variable speed Approximate reservoir oil capacity 6 liters (6000 ml) Weight : Approximate Gross weight (dry) : 500 kg Accessories : Distance block for concrete cube sample test, 15 cm and 20 sm as standard Compression test adaptors Pairs of grips for tensile test. 6' 10, 16 mm size

Versions
PP 24-1283-1 UNIVERSAL TESTING MACHINE (UTM)
Add to cart

1000kN, Tensile Capacity 500kN, Compression Capacity

PP 24-1283-2 UNIVERSAL TESTING MACHINE (UTM)
Add to cart

2000kN, Tensile Capacity 100kN, Compression Capacity

PP 24-1283-3 UNIVERSAL TESTING MACHINE (UTM)
Add to cart

3000kN, Tensile Capacity 150kN, Compression Capacity
