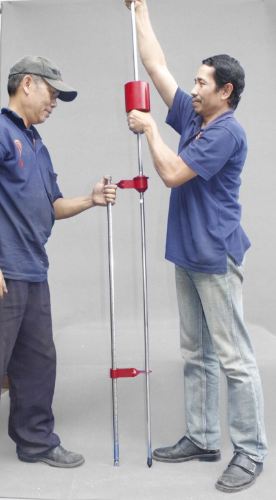

PP 23-1271 DYNAMIC CONE PENETROMETER
Soil Equipment
For rapid determination of field CBR value (rapid quality control). Effective penetration up to 75 cm depth, the tip cone 20 mm dia 60º angle. Supplied with water proof cloth carrying case.
- Dimensions (l x w x h)
- 115 x 20 x 20 cm
- Gross Weight
- 15 kg
Consists Of:
PP 23-1271-1
Handle, Stainless steel
1 pc
PP 23-1271-2
Hammer, Machined steel, Painted, 8 kg weight
1 pc
PP 23-1271-3
Guide Rod, Stainless steel, 16 mm dia drop height 575 mm.
1 pc
PP 23-1271-4
Anvil, Machined steel, welded painted.
1 pc
PP 23-1271-5
Penetration Rod, Stainless steel, 16 mm dia, 107 length.
1 pc
PP 23-1271-6
Cone, Hardened tool steel cone tip, 60 deg. angle, 20 mm dia., stainless steel adaptor.
3 pc
PP 23-1271-7
Penetration Scale, Stainless steel, 16 mm dia, 100 cm scale.
1 pc
PP 23-1271-8
Carrying Bag, Water proof cloth.
1 pc
PP 29-1333-1
Open End Wrench, Vanadium steel, 14/15
2 pc
